• INCREDIBLE VALUE

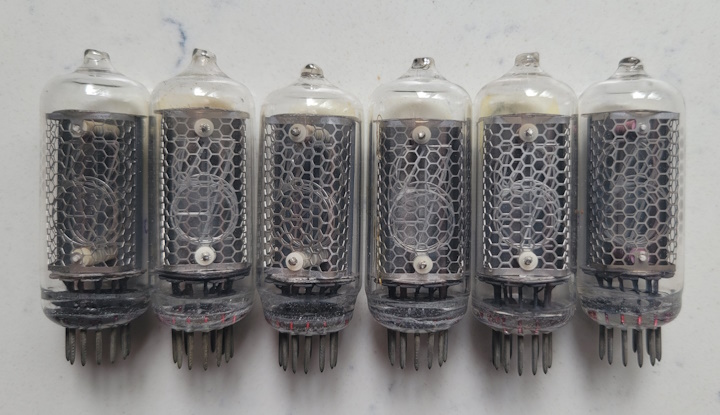

• Six, IN-8 (New, Old Stock) Tubes Included
• QTC+ KIT, CASE, TUBES, GPS OR WiFi TIME SYNC, POWER SUPPLY
• JUST ADD YOUR OWN SOLDER AND ASSEMBLY!

• Hobby Kit of Electronic Components
• Includes Nixie Tubes and Acrylic Case
• Full color RGB Tube Lighting under each tube

• RGB Tube lighting can be disabled if you prefer


  What's new on the QTC+?
  Matte Black PCB with Gold pads
  Reduced component count for RGB LEDs
  Simpler Anode Drivers, with socketed Optoisolators, for easier assembly and troubleshooting
  Double dot colon neons, with many more modes
  Support for our XTERNA Wireless Time and Temperature Transmitter

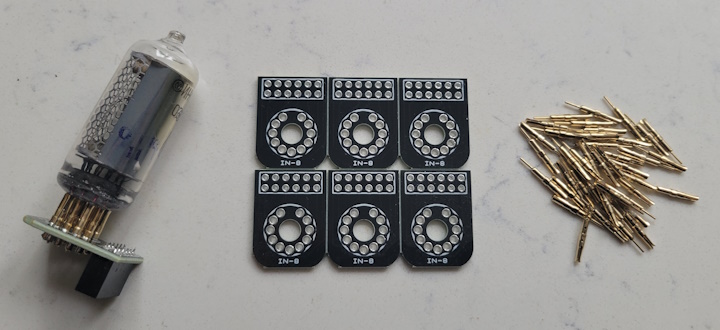

  The IN-8 tubes are mounted in individual socket receptacles. making tube changing or replacement very easy.

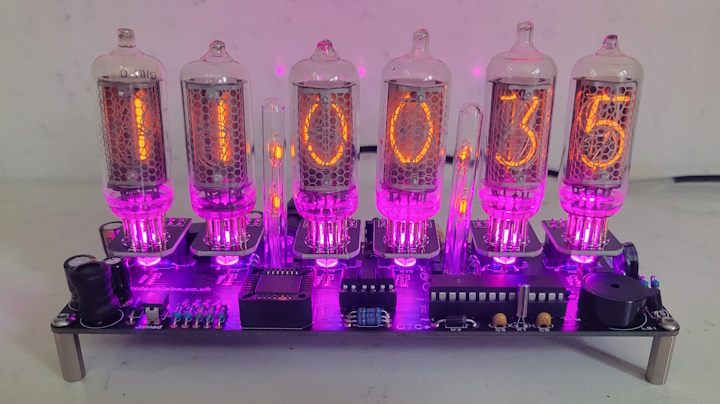

  Here is the clock after assembly - ready to mount in the included case.

• Hours, Minutes and Seconds display on Six IN-8 tubes with 18mm digit height (included)
• Uses a Quartz Crystal Oscillator as the timebase
• 12 or 24 hour modes
• Programmable leading zero blanking
• Date display in either DD.MM.YY or MM.DD.YY or YY.MM.DD format
• Programmable date display each minute
• Scrolling display of date or standard display
• Alarm, with programmable snooze period
• GPS Time Synchronisation Receiver Included with status indicator LED
• Dedicated DST button to switch between DST and standard time
• Supercapacitor backup. Keeps time during short power outages
• Simple time setting using two buttons
• Configurable for leading zero blanking
• Double dot colon neon lamps
• 11 colon neon modes including AM / PM indication (top / bottom or left / right), railroad (slow or fast) etc.
• Seconds can be reset to zero to precisely the set time
• Programmable night mode - blanked or dimmed display to save tubes or prevent sleep disturbance
• Rear Indicator LEDs dim at night to prevent sleep disturbance
• Weekday aware ‘Master Blank’ function to turn off tubes and LEDs on weekends or during working hours
• Separate modes for colon neons during night mode
• Standard, fading, or crossfading with scrollback display modes
• ‘Slot Machine’ Cathode poisoning prevention routine
• Programmable RGB tube lighting – select your favourite colour palette
• 729 colours possible. Have a different colour or your choosing every hour, or autochanging colours
• Not AC frequency dependent – works in all countries
• All user preferences stored to non-volatile memory

Download Kit Assembly Instructions Here


Drive Mode
The former K155ID1 / 74141 nixie driver IC is now replaced by a modern HV5812 High Voltage Driver IC by Supertex. With 20 outputs, it is able to drive the six Nixie Tubes in a very comfortable 3X2 multiplex.

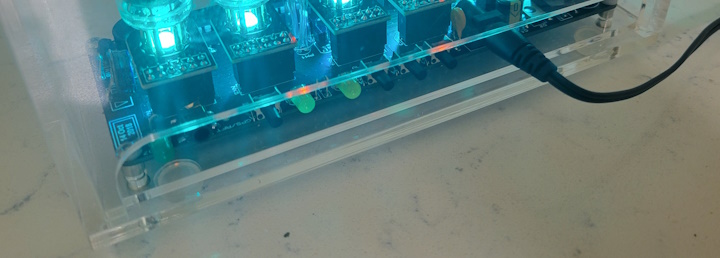

PRISMA Case is a high quality covered case, with mitred corners for a museum quality. The blue colour is the protective film you peel off.

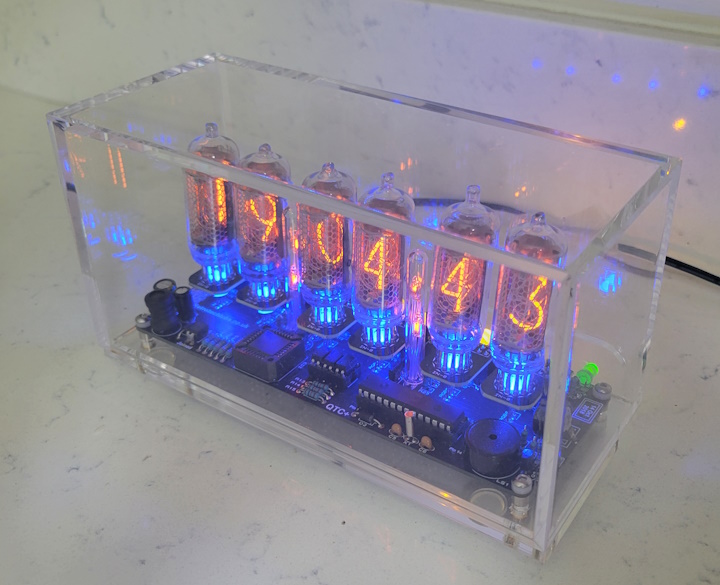

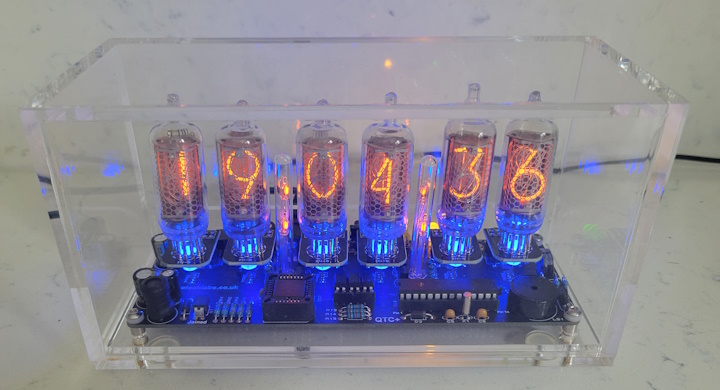

The fully assembled clock, in case. WiFi Shown, GPS Also An Option. Everything is included!

Included Time Synchronisation Options:
GPS (Add a note on your order whether you want GPS or WiFi)
GPS Time Synchronisation Receiver, which automatically receives time and date from GPS satellites. Please note, the GPS needs to be within 2m / 6ft of a window.

WiFi (Add a note on your order whether you want GPS or WiFi)
WiFi Time Synchronisation Receiver, which once quickly configured, will connect to your home WiFi Router and gather time from an NTP Time Server.

12V Power Adapter
A high quality power adapter for your country is included, with a long 2m / 6ft cable.

Download Kit Assembly Instructions Here
